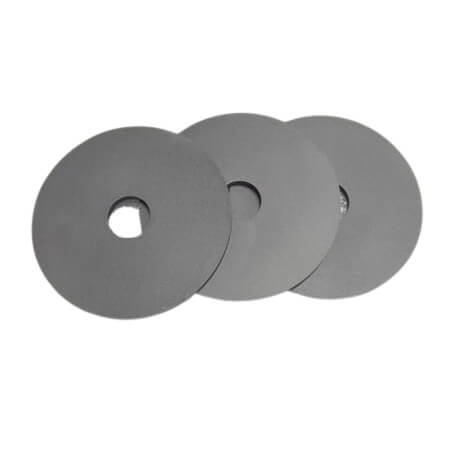

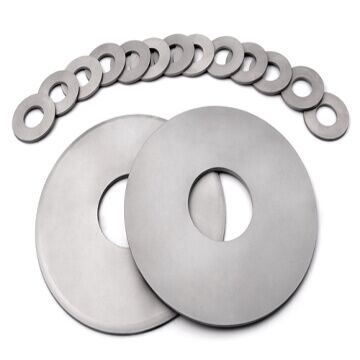

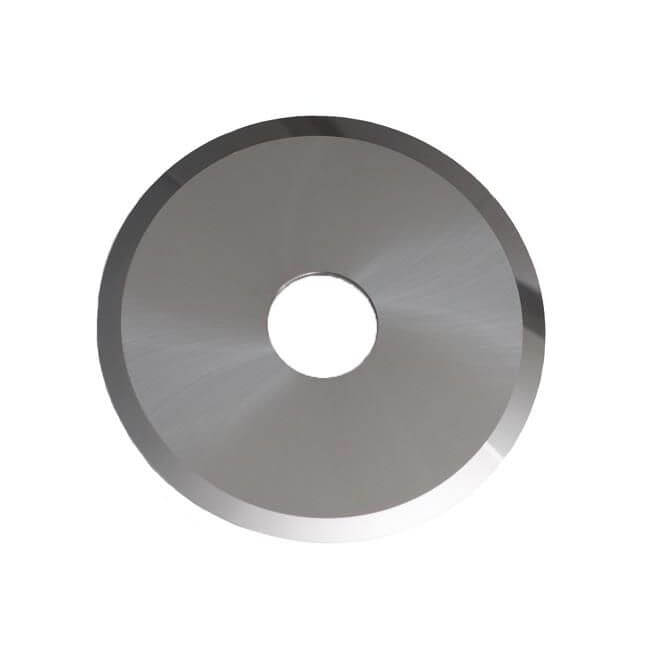

tungsten carbide cutting disc
| TYPE | OD (mm) | ID (mm) | S (mm) | TYPE | OD (mm) | ID (mm) | S (mm) |
|---|---|---|---|---|---|---|---|
| Φ12×Φ6×S | 12 | 6 | 0.6-4.5 | Φ60×Φ19×S | 60 | 19 | 0.8-7.0 |
| Φ13×Φ6×S | 13 | 6 | 0.6-4.5 | Φ63×Φ17×S | 63 | 17 | 0.8-7.0 |
| Φ16×Φ6×S | 16 | 6 | 0.6-4.5 | Φ70×Φ22×S | 70 | 22 | 0.8-7.0 |
| Φ22×Φ10×S | 22 | 10 | 0.6-4.5 | Φ75×Φ22×S | 75 | 22 | 0.8-7.0 |
| Φ25×Φ12×S | 25 | 12 | 0.6-5.5 | Φ80×Φ22×S | 80 | 22 | 0.8-7.0 |
| Φ32×Φ10×S | 32 | 10 | 0.8-5.5 | Φ83×Φ21×S | 83 | 21 | 0.8-7.0 |
| Φ40×Φ10×S | 40 | 10 | 0.8-6.0 | Φ86.5×Φ21.5×S | 86.5 | 21.5 | 1.0-7.0 |
| Φ45×Φ13×S | 45 | 13 | 0.8-6.0 | Φ90×Φ22×S | 90 | 22 | 1.0-7.0 |
| Φ53×Φ13×S | 53 | 13 | 0.8-6.0 | Φ100×Φ22×S | 100 | 22 | 1.0-7.0 |
| Φ52×Φ24.5×S | 52 | 24.5 | 0.8-6.0 | Φ125×Φ22×S | 125 | 22 | 1.0-7.0 |
| Φ53×Φ24.5×S | 53 | 24.5 | 0.8-6.0 | Φ200×Φ70×S | 200 | 70 | 3.0-4.5 |
| Φ55×Φ16×S | 55 | 16 | 0.8-6.0 | Φ250×Φ70×S | 250 | 95 | 3.0-4.5 |
| Φ58×Φ22×S | 58 | 22 | 0.8-6.0 |
| Grade | ISO | Density g/cm3 | T.R.S N/mm3 | Hardness HRA | Application |
|---|---|---|---|---|---|
| YG6A | K10 | 14.95 | 1800 | 92.5 | Fine grain alloy, good wear resistance. It is suitable for machining chilled cast iron, nonferrous metal and its alloy. It is also suitable for semi-finishing and finishing hardened steel and alloy steel. |
| YG8 | K20 | 14.8 | 2200 | 90.5 | High strength, impact resistance higher than YG6A, but wear resistance and cutting speed comparatively lower.It is suitable for disc cutters in the electronics industry. |
| YG10X | K40 | 14.5 | 2400 | 91.5 | Fine grain alloy, good wear resistance. It's used for processing hard wood, veneer board, PCB, PVC and alloy. |
| YS2T | M10 | 14.5 | 2480 | 92 | Fine grain alloy, It's suitable for machining of refractory alloy, stainless steel and high manganese steel, etc. |
| G20 | 14.3 | 2420 | 90.0 | Conventional wear resistance, high bending strength, it's used for steel alloy etc. |
