tungsten carbide cutting wheel for manual tile&glass cutter
- Tile glass cutting wheel is made of premium tungsten carbide materials,
titanium coated optionally. - High strength, excellent wear resistance, long cutting life.
- Crisp scoring lines, sharp cutting edge, precision scoring, smooth incision, no edge collapse.
- Simple and convenient operation, environmental protection, no noise and dust.
- A complete range of sizes for tungsten carbide scoring wheel, sufficient
production capacity, fast delivery.

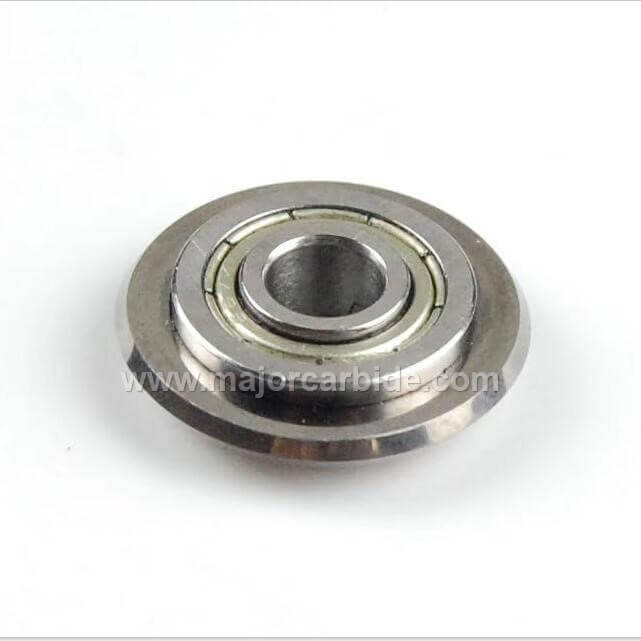

Tile cutting wheel with bearing
Tungsten carbide scoring wheel with bearing can run evenly under the pressure of the center of gravity, reduce
friction, and prolong the service life of the product.
Golden and silver color available

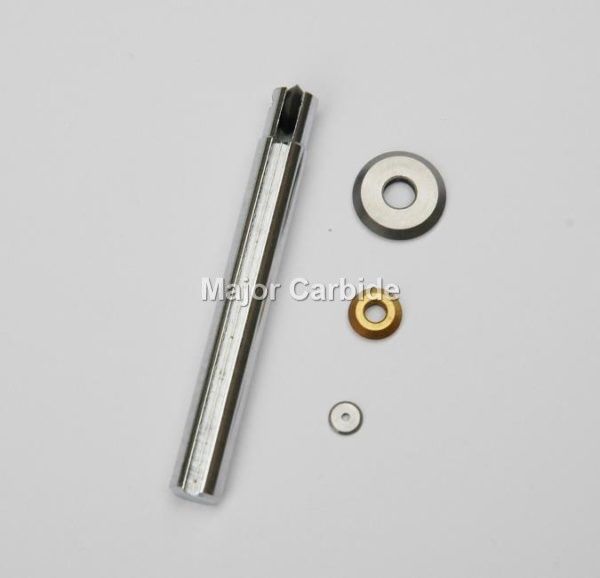

Sizes for carbide tile cutting wheel
| Size | D (mm) | Tol. (mm) | d (mm) | Tol. (mm) | H (mm) | Tol. (mm) | Angle (a) |
|---|---|---|---|---|---|---|---|
| D22*6*4.7 | 22 | ±0.20 | 6 | +0.10-0 | 4.7 | +0- -0.1 | 90°-120° |
| D22*6*2 | 22 | ±0.20 | 6 | +0.10-0 | 2 | +0- -0.1 | 90°-120° |
| D22*14*2 | 22 | ±0.20 | 14 | +0.10-0 | 2 | +0- -0.1 | 90°-120° |
| D22*10.5*2 | 22 | ±0.20 | 10.5 | +0.10-0 | 2 | +0- -0.1 | 90°-120° |
| D20*5*3 | 20 | ±0.20 | 5 | +0.10-0 | 3 | +0- -0.1 | 90°-120° |
| D18*6*3 | 18 | ±0.20 | 6 | +0.10-0 | 3 | +0- -0.1 | 90°-120° |
| D18*6*1.5 | 18 | ±0.20 | 6 | +0.10-0 | 1.5 | +0- -0.1 | 90°-120° |
| D16*6*4.9 | 16 | ±0.20 | 6 | +0.10-0 | 4.9 | +0- -0.1 | 90°-120° |
| D16*6*3 | 16 | ±0.20 | 6 | +0.10-0 | 3 | +0- -0.1 | 90°-120° |
| D16*6*2 | 16 | ±0.20 | 6 | +0.10-0 | 2 | +0- -0.1 | 90°-120° |
| D15*6*1.5 | 15 | ±0.20 | 6 | +0.10-0 | 1.5 | +0- -0.1 | 90°-120° |
| D13.5*6*1.0 | 13.5 | ±0.20 | 6 | +0.10-0 | 1.0 | +0- -0.1 | 90°-120° |
| D12*3*3 | 12 | ±0.20 | 3 | +0.10-0 | 3 | +0- -0.1 | 90°-120° |
| D9.9*2*2 | 9 | ±0.20 | 2 | +0.10-0 | 2 | +0- -0.1 | 90°-120° |
Sizes for carbide glass cutting wheel
| Size | D (mm) | Tol. (mm) | d (mm) | Tol. (mm) | H(mm) | Tol. (mm) | Angle(a) |
|---|---|---|---|---|---|---|---|
| D8*2*2 | 8 | ±0.20 | 2 | +0.10-0 | 2 | +0- -0.1 | 90°-150° |
| D8*2*1.38 | 8 | ±0.20 | 2 | +0.10-0 | 1.38 | +0- -0.1 | 90°-150° |
| D6.5*1.5*1.0 | 6.5 | ±0.20 | 1.5 | +0.10-0 | 1 | +0- -0.1 | 90°-150° |
| D6*1.5*1.2 | 6 | ±0.20 | 1.5 | +0.10-0 | 1.2 | +0- -0.1 | 90°-150° |
| D5.1*1*1.0 | 5.1 | ±0.20 | 1.0 | +0.10-0 | 1.0 | +0- -0.1 | 90°-150° |
| D4.3*1.5*1.2 | 4.3 | ±0.20 | 1.5 | +0.10-0 | 1.2 | +0- -0.1 | 90°-150° |
Unlisted sizes are available on customer’s requirements.
Production technics
Tile cutter replacement cutting wheel are mainly made from wolfram carbide and cobalt powder by powder metallurgy methods.
The main production process of tile cutter wheel blade is powder milling, ball milling, pressing and sintering. For different
uses, the content of WC and Co in tile cutter scoring wheel is not the same.
Application
Tungsten carbide scoring wheel is replacement blade for manual tile cutter and manual glass cutter, it’s used for straight
line cutting and angle cutting of all kinds of tile, glass, ceramic and porcelain.
Main Process flow
powder milling → formula according to grade→ wet grinding → mixing → crushing → drying → sieving → adding forming agent → redrying → sieving to obtain a mixture → granulating → pressing → forming → Sintering →preforms→machining→ inspection →packing → Storage.
