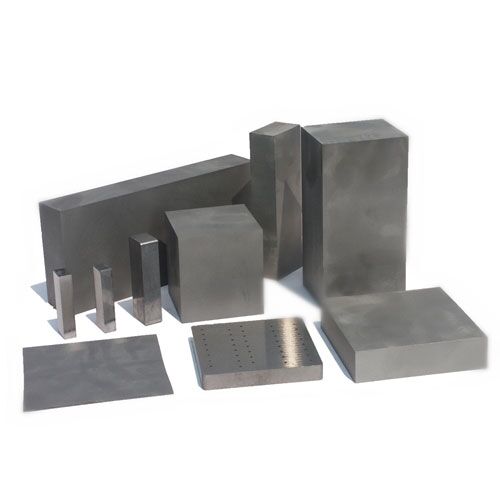

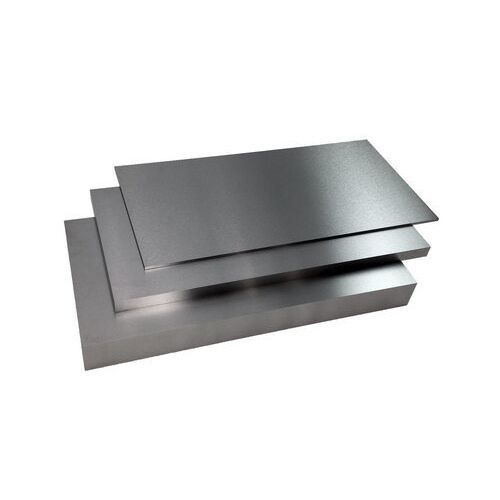

tungsten carbide plate
Performance features
- Excellent red hardness, high hardness, good wear resistance, and chemical
stability. - Non-destructive ultrasonic flaw detection, without sand holes and pores.
- Tungsten carbide plate is sintered by HIP-sinter furnace, greatly reduces
porosity, and enhances compactness. - Effectively prevent the occurrence of pressing defects by cold isostatic
pressing machine, and the density is more uniform for cemented carbide
plate blanks. - Stress released, avoids the occurrence of cracks in the cutting and forming
process.
Tungsten carbide sheet for IC dies
| Grade | Co | Density g/cm3 | Hardness HRA | T.R.S N/mm3 | Application |
|---|---|---|---|---|---|
| KD10 | 10 | 14.4 | 91.5 | 4300 | Suitable for stamping of copper and aluminum sheets, the thickness of copper and aluminum less than 0.2mm. |
| KD12 | 12 | 14.3 | 90.5 | 4000 | Suitable for stamping and cutting copper, aluminum and steel sheet. |
| KD20 | 13 | 14.25 | 91 | 4100 | With good applicability,suitable for stamping of copper and aluminum sheets. |
| KD36 | 15 | 14 | 90 | 3900 | suitable for stamping of EI silicon steel sheet, steel plate cold commercial and stainless steel plate. |
| Grade | Co | Density g/cm3 | Hardness HRA | T.R.S N/mm3 | Application |
|---|---|---|---|---|---|
| KD40A | 12 | 14.2 | 89.5 | 3300 | suitable for stamping of top and bottom die for coll rolled sheet. |
| KD45A | 15 | 14.0 | 88.0 | 3500 | suitable for stamping of upper die for silicon steel sheet and lower die for coll rolled sheet. |
| KD55 | 20 | 13.5 | 86.4 | 3400 | suitable for stamping thick plates under large impact load conditions. |
| KD42 | 15 | 13.8 | 89.5 | 4000 | suitable for stamping of upper and lower die for soft material |
| Grade | Co | Density g/cm3 | Hardness HRA | T.R.S N/mm3 | Application |
|---|---|---|---|---|---|
| YG6A | 6 | 14.95 | 92.5 | 1800 | Fine-grain size, with good wear resistance, used for processing blades, wear resistance parts etc. |
| YG8 | 8 | 14.8 | 89.5 | 2200 | High bending strength, wear resistance lower than YG6A, used for processing blades, wear resistance parts etc. |
| YG15 | 15 | 14 | 87.5 | 2800 | Used for punch dies, stamping dies and wear resistance parts. |
| YG20 | 20 | 13.5 | 85.5 | 3200 | High bending strength, used for punching dies and other stamping dies. |
| YS2T | 15 | 14.45 | 91.5 | 2350 | Fine grain, with high wear resistance and bending strength, suitable for the grinding and finishing of cast iron rolls and high nickel-chromium rolls. |
Size for tungsten carbide block
| L(mm) | W(mm) | S(mm) |
|---|---|---|
| 300 | 300 | 20-40 |
| 250 | 250 | 5-50 |
| 200 | 200 | 5-45 |
| 150 | 150 | 5-45 |
| 150 | 130 | 10-45 |
| 150 | 100 | 10-45 |
| 150 | 80 | 10-45 |
| 135 | 135 | 10-70 |
| 125 | 125 | 3-45 |
| 105 | 105 | 2-70 |
| 100 | 100 | 5-70 |
| 100 | 50 | 10-50 |
| 100 | 45 | 10-50 |
| 80 | 55 | 10-50 |
| 80 | 40 | 10-40 |
| 70 | 35 | 5-40 |
| 45 | 25 | 5-20 |
| 35 | 19 | 5-20 |
| 20 | 20 | 5-20 |
| 18 | 13 | 5-20 |
Production technics
Carbide plates are mainly made from wolfram carbide and cobalt powder by powder metallurgy methods. The main production processes of sintered tungsten carbide plate are powder milling, ball milling, pressing, and sintering. For different uses, the content of WC and Co in tungsten carbide sheet metal is not the same.
Application
Tungsten carbide sheet plate is mainly used to make high-speed die and multi-station progressive die for punching copper, aluminum, stainless steel, cold-rolled sheet, EI sheet, SPCC, silicon steel sheet, hardware, standard parts, upper and lower punches, etc. It is also an excellent material for making high-temperature resistance parts, wear-resistant parts, anti-shielding parts, anti-radiation, and corrosion-resistant parts.
Main Process flow
Powder milling→ formula according to application requirements → wet milling → mixing → crushing → drying → sieving → adding forming agent → redrying → sieving to obtain cemented carbide powder→ granulating → pressing → forming → low-pressure sintering →blanks→Flaw inspection→Packing→Warehousing
