Carbide wire guide dies are commonly used to guide and strand wires to form cables for stranding, bunching, straightening and twisting machines.
The entrance of a stranding die is broad enough so that the arriving wires from the lay plate enter in without any scraping. The wider reduction angle allows a much better blend from the entrance to the reduction angle.
- virgin raw materials, sinter-HIP treatment
- high hardness, high wear resistance, good toughness
- good surface finish, high precision, long service life
- a wide range of sizes and grades available, quickly delivery
Carbide wire guide dies including

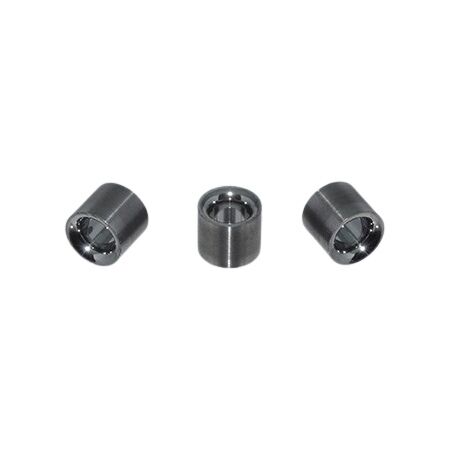

- tungsten carbide wire guides
- tungsten carbide bushings

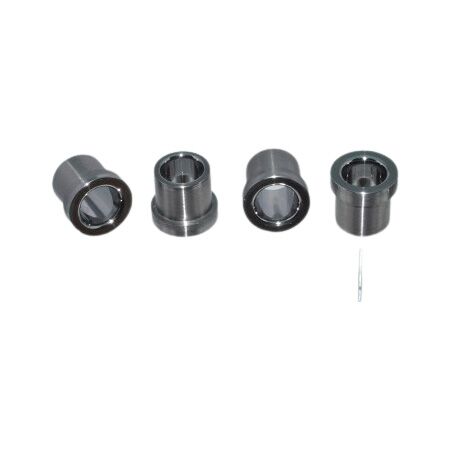

- carbide stranding and bunching dies
the grade for carbide wire guide inserts
Grade | Density g/cm3 | Hardness HRA | T.R.S N/mm3 |
---|---|---|---|
YG6X | 14.95 | 91.5 | 1800 |
YG6 | 14.95 | 90.5 | 1900 |
YG8 | 14.8 | 89.5 | 2200 |
YG10 | 14.5 | 88.5 | 2400 |
YG15 | 14 | 87 | 2800 |
